Small Garage Setup

The constraint, stated plainly

A small garage that still parks a car has effectively no spare floor. The usable space is the gap you squeeze through with the door shut, and anything that narrows that gap makes the garage worse rather than better organized.

So the rule for this page is simple: if it stands on the floor, it has to justify itself against the car. Almost nothing does.

What that rules out, despite being good products: a 60 or 70-inch workbench, a 72-inch cabinet, freestanding shelving, and any cabinet system. Each has a wall-mounted or folding alternative that holds nearly as much and costs you nothing on the floor.

Step 1: light it, because it costs nothing in space

A tight garage is a dark garage — the car blocks most of the light from a single central fixture. Two or three linkable 4 ft LED fixtures mounted along the SIDES rather than over the center line fixes it, and they occupy no floor and no usable wall.

At roughly 60 lumens per square foot, a 250 sq ft bay wants about 15,000 lumens — two fixtures at 7,500 lm. See the garage lighting layout guide.

Step 2: 12-inch shelves, at head height

This is the specific thing that makes a narrow garage work, and it is a depth decision rather than a product decision.

A 24-inch-deep shelf at shoulder height in a narrow garage is something you will walk into every single time you squeeze past the car. A 12-inch shelf at the same height is not.

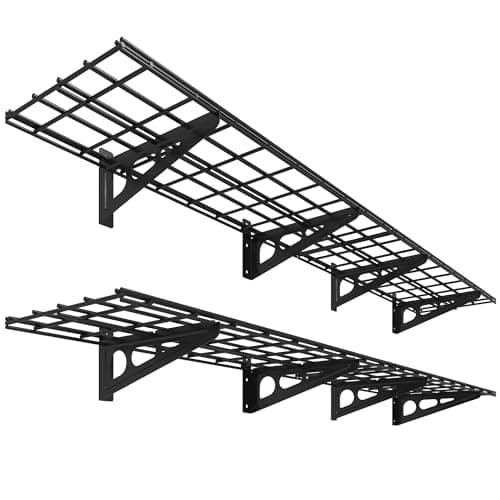

FLEXIMOUNTS' WR16B is a pair of 12 x 72 in. shelves publishing 900 lb total, and it is exactly the right shape here. Save the 24-inch-deep shelves for above windshield height, where you can afford the projection.

One caveat FLEXIMOUNTS publishes and worth repeating: the shelves cannot be mounted on metal studs, and on the 1x6 model at 24 in. stud spacing the two shelves must be installed separately. Check your wall first.

Step 3: a rail for the long-handled tools

Rakes, brooms, shovels, the snow shovel. In a small garage these are the worst offenders — they fall over, they take floor, and they end up leaning against the car.

A rail with sliding hooks is the cheapest fix in this whole build and it mounts on a wall low down, below the shelves, where nothing else wants to be. LBT's 66-inch publishes a 720 lb rail capacity and a 9 mm hook diameter, which is the spec that tells you whether a hook bends.

Step 4: a 2 x 8 overhead rack, along a side wall

Not a 4 x 8 over the car. In a narrow bay, a 48-inch-deep deck hangs into the space you open the car door in, and getting at it means opening the door into the rack.

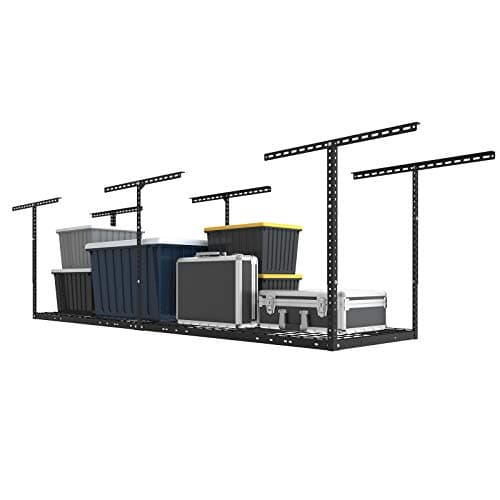

FLEXIMOUNTS' 2 x 8 ft rack is 24 inches deep and eight feet long — it hugs a side wall and takes the long things (skis, lumber, a ladder, pipe) that are hardest to store in a small space. Published 800 lb tested / 400 lb rated, with a 22-40 in. drop range.

Measure your joist spacing first. At 24 inches or less it fits; above that you are adding blocking. See overhead rack ceiling safety.

Step 5: a folding bench, not a fixed one

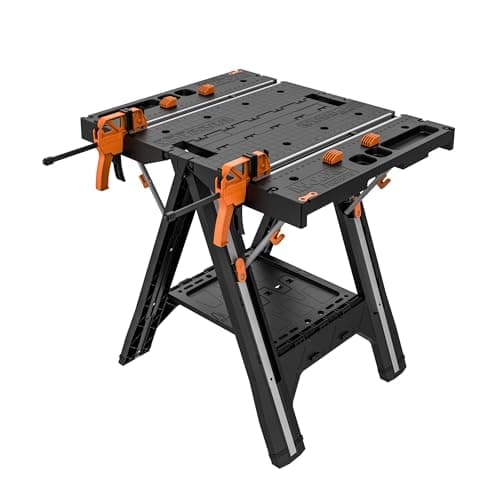

A WORX Pegasus folds to a few inches thick, converts between a work table and a sawhorse, and has clamps built into the top so you are not buying a vise immediately. Keter's folding bench claims 1,000 lb and will not rust.

What you give up: rigidity under hand-planing or heavy filing. What you gain: a full-size work surface when it is open and four inches of wall when it is not, which in this garage is the whole argument. See benches for small garages.

Step 6: bins, and nothing loose

In a small garage, loose items are the thing that makes it feel chaotic, because there is no spare surface for them to sit on tidily. Everything goes in a bin on a shelf.

Two sizes: Akro-Mils 30230 (published 30 lb per bin) for hardware, and lidded 27-gallon totes for the overhead rack. Nothing in between — see the best garage storage bins.

The build

What to add later, in order

1. A pegboard panel above where the bench unfolds, so hand tools are at hand. See the best pegboard for a garage.
2. A rolling tool box rather than a chest, so the tools park under a shelf. See the best rolling tool boxes.
3. One wall-hung cabinet for chemicals, rather than a floor cabinet. Gladiator's Wall Gearbox publishes 150 lb per cabinet and hangs on repositionable brackets.
4. A 1,500W infrared heater over the bench if you use the garage in winter. It publishes 150 sq ft of coverage, which in a small bay is most of it.

Also worth reading

The one-car garage page if you have a bit more room than this assumes, and garage setup under $500, which follows the same priorities with a hard budget.
