High-Ceiling Garage Setup

Why 11-12 feet is the threshold

Light spreads as it travels. A linear shop light designed for a 9-foot ceiling delivers a useful level at a bench; at 14 feet that same light has spread over nearly 2.5 times the area, so the level at the bench is a fraction of it.

You can compensate with more fixtures and plenty of tall shops are lit that way. A UFO high bay instead uses a reflector and a narrower beam to concentrate light downward, so more of it arrives where you are.

The rough crossover is 12 feet. ELEKICO publishes its own upper limit for a linear fixture: not suitable for ceilings 20 ft or higher.

Lighting: fewer fixtures, and dim them

At 150-160W each, two or three high bays light a tall two or three-car garage — which is far fewer mounting points than the linear equivalent, and that matters when every mounting point is a ladder trip.

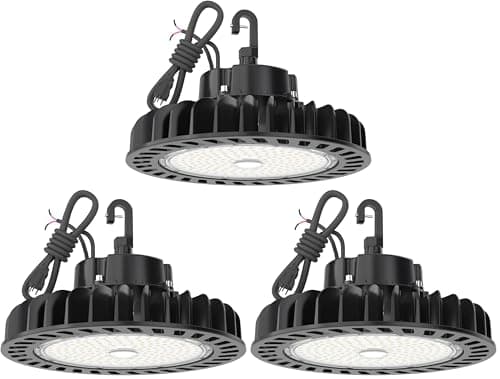

Then dim them. A fixture bright enough to light a floor from 14 feet is extremely bright to look at, and in a garage you look up at the rack, the door track, the high shelf. HYPERLITE's 150W is 1-10V dimmable and the only dimmable fixture on this site — budget for a compatible dimmer, which is not a standard wall dimmer.

Full detail on lighting for high garage ceilings.

Storage: the real upside

A tall garage has far more usable vertical space, and the question becomes how to reach it rather than how to fit it.

Overhead racks, dropped lower

FLEXIMOUNTS racks publish a 22-40 inch drop range, which in a 9-foot garage is a constraint and in a 14-foot garage is an opportunity: drop the rack to a height you can actually reach from a short ladder rather than hanging it tight to the ceiling.

A lifting rack earns its price here

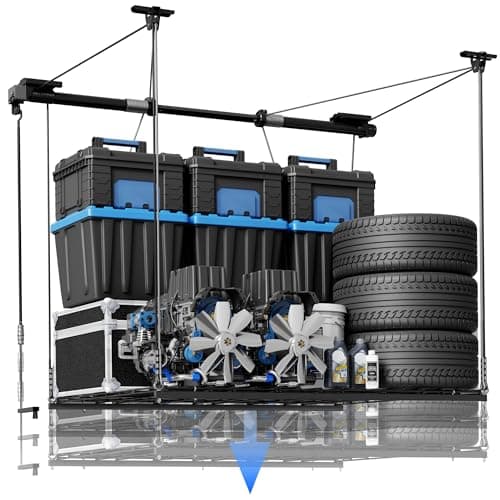

The honest objection to overhead storage is the ladder, and in a tall garage the ladder is longer. FLEXIMOUNTS' GL1 publishes a 79-inch lifting range, 600 lb tested / 350 lb rated, with a double rope and a safety lock, and it lowers the whole deck with a drill or a hand crank.

In a 9-foot garage a lift is a convenience. In a 14-foot garage it is the difference between using the ceiling and filling it.

Tall shelving and full-height slatwall

Letaya's 79-inch shelving publishes 6,000 lb total across four tiers at 79 in. wide and 24 in. deep, and a tall garage has the headroom for it without it dominating. Slatwall can run higher too — though put the heavy items within reach and the light ones up top.

Heating: the problem with tall

Two things make a tall garage harder to heat.

More air volume. A 12-foot ceiling over 450 square feet is roughly 40% more air than a 9-foot one, so the sizing figures go up accordingly.

Stratification. Warm air rises, so in a tall garage the heat sits above your head where it does nothing. A ceiling fan on low — running downward — pushes it back, and it is a cheap fix that makes a disproportionate difference.

One product is specifically ruled out: Heatstar's radiant MH25NG publishes a 7-9 ft mounting height range, so above 9 feet it is simply the wrong product. For a tall garage you want a fan-forced unit heater that moves air rather than a radiant heater that warms surfaces from a fixed height.

Insulate the ceiling especially, because that is where the heat you just paid for goes. See how to insulate a garage for heating.

The build

Read this with your bay-count page

Ceiling height changes the lighting, the storage and the heating. Floor area still decides the bench, the layout and the total lumens — so read the two-car page or the three-car page alongside this one.
