Lighting for High Garage Ceilings

A garage with a 12 or 14 foot ceiling — common in a shop build, a garage with a mezzanine, or anywhere designed for a lift — is a different lighting problem from a standard 9 foot one. Three things change: how the light spreads, how bright a fixture looks, and how hard it is to reach.

Why height changes the geometry

Light from any fixture spreads as it travels. A linear shop light designed for a 9 foot ceiling puts a useful amount of light on a bench at that distance; at 14 feet, the same fixture's light has spread over nearly 2.5 times the area, so the level at the bench is a fraction of what it was.

You can compensate by buying more fixtures, and plenty of tall shops are lit that way. But it is inefficient, and it is where UFO high bays earn their existence: a high bay uses a reflector and a narrower beam to concentrate light downward, so more of it arrives where you are rather than on the walls at ceiling height.

The rough crossover is 12 feet. Below it, linear fixtures spread light more evenly and cost less. Above it, high bays win. ELEKICO's linear fixture publishes its own upper limit: not suitable for ceilings 20 ft or higher.

Dimming stops being optional

This is the thing people do not anticipate. A fixture bright enough to light a floor from 14 feet is extremely bright to look at directly — and in a garage you look up constantly: at the overhead rack, at the door track, at the thing you are reaching for on a high shelf.

HYPERLITE's 150W high bay is 1-10V dimmable, and it is the only dimmable fixture on this site. At 21,750 lumens it genuinely needs to be — in a tall garage you want it at full output for a task and turned down for general use.

The caveat: 1-10V dimming needs a compatible dimmer, which is a separate purchase and not a standard wall dimmer. Budget for it rather than discovering it afterward.

CINOTON's 160W at 24,000 lumens is the brightest fixture here and is not dimmable — which makes it the right choice for a large tall workshop and the wrong one for a domestic garage with a 12 foot ceiling.

How many high bays

The same lumens-per-square-foot arithmetic applies — 50-75 lm/sq ft for a working space — but the fixture count is lower because each one is much brighter.

Two high bays in a two-car garage is a very simple install — two hooks, two cords. That simplicity is a real part of the appeal at height, where every mounting point is a ladder trip.

Mounting: plan for replacement

These are integrated fixtures, so you do not change a bulb — eventually you replace the whole unit. At 14 feet, you want that to be as easy as possible.

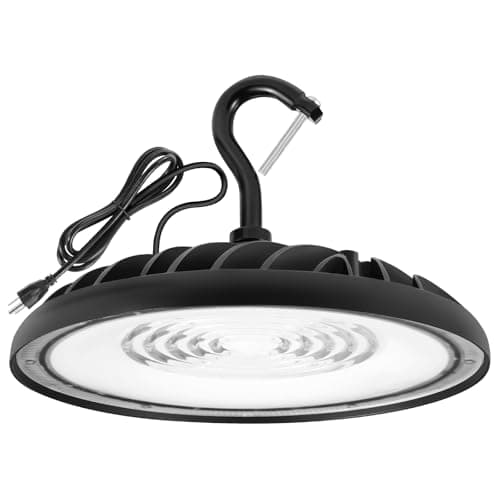

• Hook and cord, not hardwired. HYPERLITE ships a hook and a 5 ft cord; Sylvania ships a 6 ft cord and plug with an open hook and safety screw. Swapping a fixture becomes a ladder trip rather than an electrician visit.
• Use the safety rope. HYPERLITE includes one. On a 6.8 lb fixture hanging over a car, a secondary retention is the right thing to fit and takes thirty seconds.
• Check the hook's fixing. A high bay hangs from a single point, so that point carries everything. Into structure, not into a ceiling panel.
• Sunco publishes three mounting methods — hook, ceiling and 3/8 in. NPT pole mount — which matters if your ceiling is trusses rather than a flat surface.

Light decay matters more at height

LEDs fade rather than fail, and at 14 feet you will not notice gradual fading until the space is noticeably dim — because you have no reference point and the change is slow.

CINOTON publishes light decay below 5%, which is the only decay figure on this site and the spec that tells you whether the fixture is still doing its job in year eight. It attributes that to a die-cast aluminum housing designed for heat dissipation, which is the actual mechanism: LEDs fade faster when they run hot.

For a fixture you will replace reluctantly because it is 14 feet up, a published decay figure is worth paying for.

Durability specs that matter in a tall garage

A tall garage is often a detached shop, which means temperature swings and sometimes damp.

• IP65 — HYPERLITE and Sunco both publish it. Waterproof and dustproof, which matters in a space with big doors and a lot of air movement.
• Operating temperature range — Sunco publishes -40°F to 113°F, which is the only such figure here and relevant for an unheated detached shop.
• Certification — Sunco publishes UL, FCC, DLC and RoHS. DLC specifically is what utility rebate programs require, so it may be worth money.

When linear is still right

High bays are not automatically the answer above 12 feet. Two cases where linear still wins:

A long narrow space. A high bay lights a circle; a linear fixture lights a line. In a long narrow garage or a lean-to, several linear fixtures distribute better than two high bays.

Over a bench on a wall. Even in a tall garage, the bench wants light from close above it, not from 14 feet up. A 4 ft fixture or a T5 strip under a shelf is the right answer regardless of ceiling height — see the garage lighting layout guide.

The fixtures for a tall garage

The rest of a tall garage

A high ceiling changes more than the lighting. It is more air volume to heat — see how to insulate a garage for heating, and note that Heatstar's radiant heater publishes a 7-9 ft mounting range and is simply the wrong product up there.

It is also a storage opportunity: more vertical space for overhead racks and tall shelving. The whole picture is on high-ceiling garage setups.
