Garage Setup Under $500

Why this order, and not a bench

The instinct with a garage budget is to buy a workbench, because a bench is what a workshop has. At $500 that is the wrong call, for two reasons.

First, a bench does nothing about the clutter. If the garage is full, a bench becomes another surface covered in things, and the problem is unchanged.

Second, a bench commits four to six feet of your best wall permanently — and until the storage is sorted, you do not know which wall you can afford to give up. Buying the bench first frequently means buying it in the wrong place.

So: light it, clear the floor onto the walls and ceiling, and buy the bench when you know where it goes. How to organize a garage is the same argument as a step-by-step.

1. Lighting, first

Cheapest item on the list and the one that makes every subsequent job easier — finding studs, reading a tape, seeing into a bin.

hykolity's 3-CCT fixture publishes 5,500 lm at 42W (130 lm/W), selectable 4000K / 5000K / 6500K, three output levels, and links up to six on one plug. For a 450 sq ft two-car garage you want four of them — about 22,000 lumens, at the lower end of the 50-75 lm/sq ft band but a transformation from what is probably there now.

No electrician: they plug in, link together and hang on chains. See the best garage lighting.

2. Wall shelving, the best value in the garage

A pair of 2 x 6 ft wall shelves gives you 24 square feet of storage at zero floor cost. Nothing else in this market comes close on value.

FLEXIMOUNTS' WR26BH-V2 publishes 600 lb per shelf (1,200 lb total), includes eight hooks, and uses tool-free spring-pin assembly. It also publishes its tubing dimensions, which is as close to a gauge as this category gets.

Check your wall first. FLEXIMOUNTS states plainly that these cannot be mounted on metal studs — and that honesty is worth noting, because it is the detail that would otherwise cost you a return and a hole in the wall.

3. A rail and a pegboard panel

Two cheap purchases that solve the two biggest sources of floor clutter.

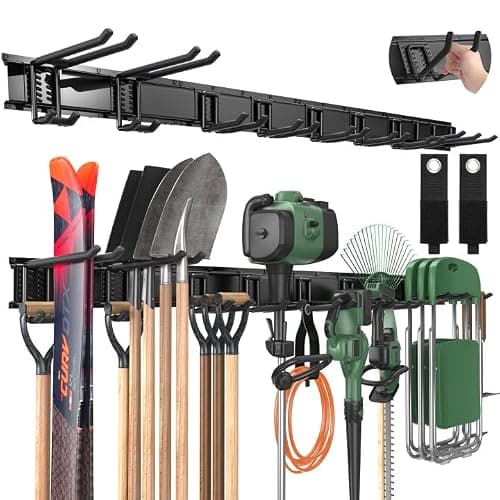

A rail with sliding hooks, low on the wall by the door, for rakes, brooms, shovels and the leaf blower. LBT's 66-inch publishes a 720 lb rail capacity and a 9 mm hook diameter. Nothing else handles long handles cleanly.

A metal pegboard panel at chest height where the bench will eventually go, for the hand tools you reach for constantly. Metal, not hardboard — hardboard holes fray within a year and hooks start falling out. Wall Control publishes a pre-formed 3/4 in. standoff flange, which is what makes hooks seat properly.

4. Bins, in two sizes

A shelf of loose items is a tidier version of a floor of loose items. Two sizes and nothing in between:

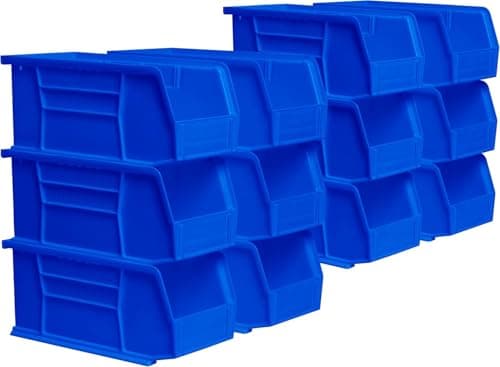

• Akro-Mils 30230 — 11 x 5 x 5 in., twelve per pack, 30 lb per bin published (the only bin rating in this category), and they hang on louvered panels as well as stacking.

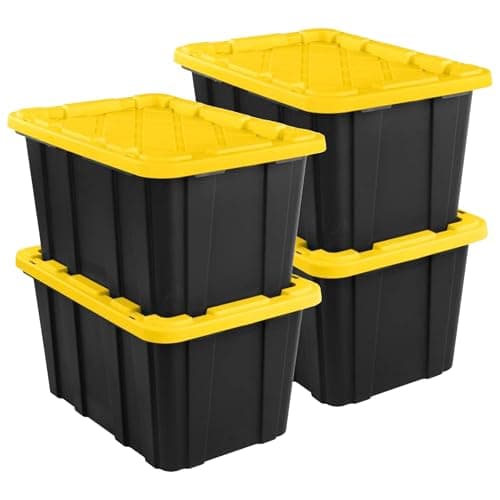

• Sterilite 27-gallon totes — lidded, with tie-down keyholes in the lid, and the size overhead racks are designed around for when you add one.

Label them as you fill them. Nobody labels forty bins afterwards.

The build

The running total above is computed from live Amazon prices and excludes any item without one, so it is always current and always an understatement rather than an estimate. Whether this build lands under $500 on the day you read it depends on those prices — the ORDER is the advice; the total is information.

If you have a bit more

The next purchase, in order:

1. An overhead rack for the seasonal boxes. A 4 x 8 ft publishes 750 lb rated and gives you 105 cubic feet — see the best overhead garage storage racks.
2. A 1,500W infrared heater over the bench area, if you use the garage in winter. Published 150 sq ft coverage, no install at all.
3. A pegboard accessory kit with bins — ELEAD's 297-piece includes twenty bins and the peg locks that bridge hook sizes.
4. Then the bench. By now you know which wall is free.

The free upgrades

Two things that cost almost nothing and are worth doing alongside this build: paint the ceiling white if it is dark (reflected light makes the fixtures measurably more effective), and sort ruthlessly before you buy any storage, because storage for things you should have thrown away is the most expensive storage there is.

More of those on garage makeover on a budget.
